2024+ LC250 SDHQ Built Under Hood Power Solution Kit + Switch Pros SP9100 Kit

OVERVIEW

If you are planning on adding lights, a compressor, and other electrical accessories to your 2024+ LC250, this is the way to do it. Our SDHQ Built Under Hood Power Solution kit will create a remote battery terminal power source in the engine bay, capable of safely supplying power to anything from rock lights to a winch. The headache of adding accessories in the future is now easier than ever on the LC250, as wiring new parts will be to the SP9100 in the engine bay.

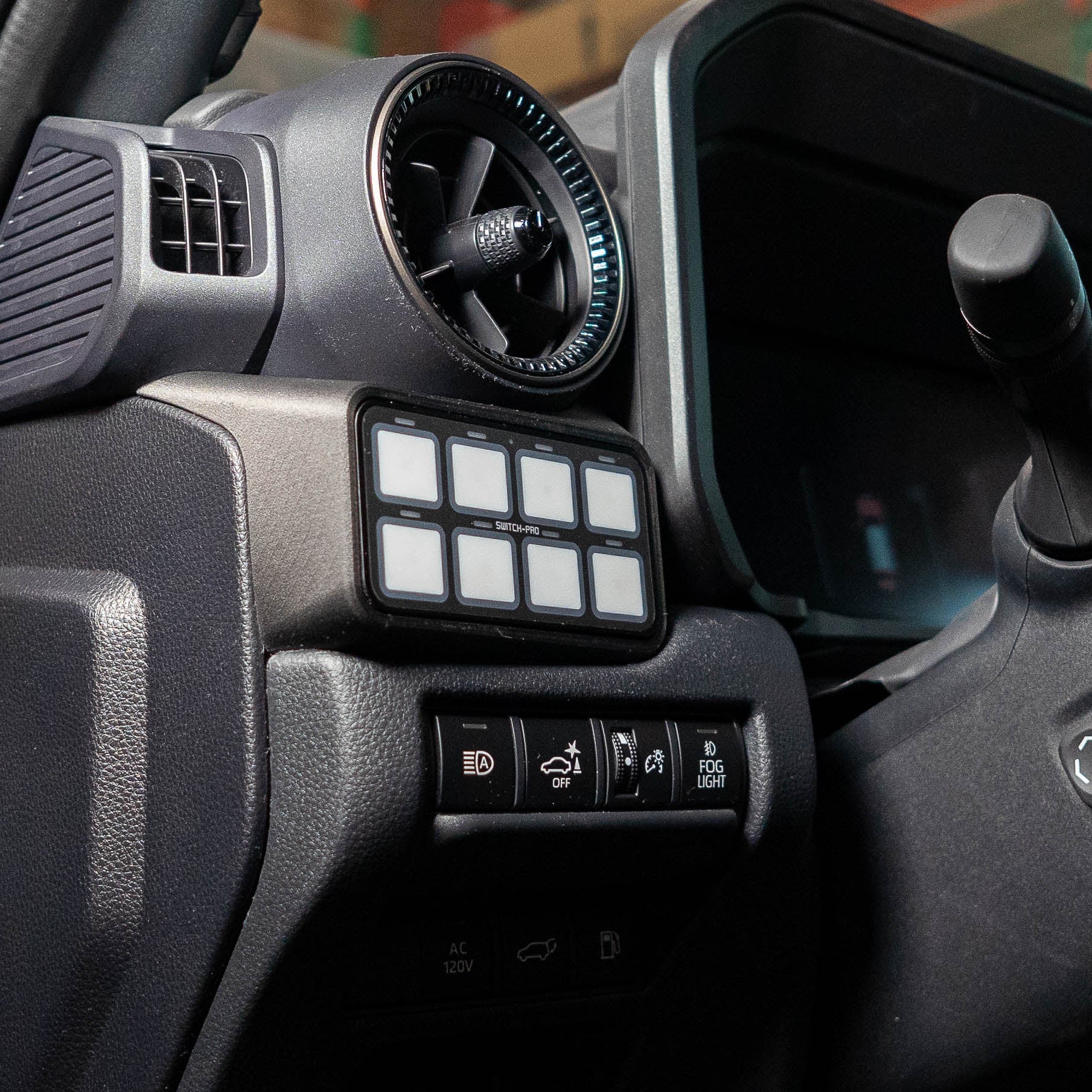

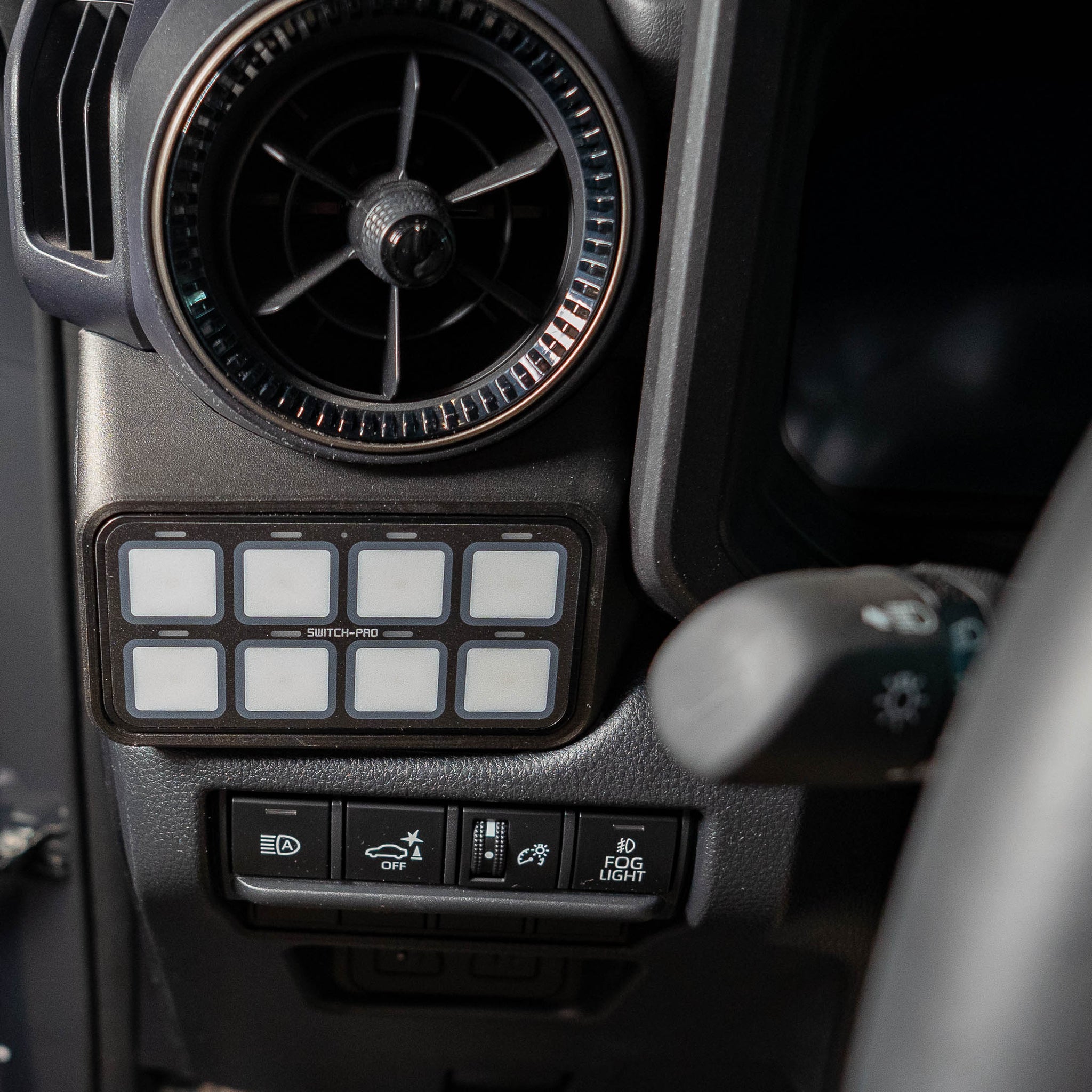

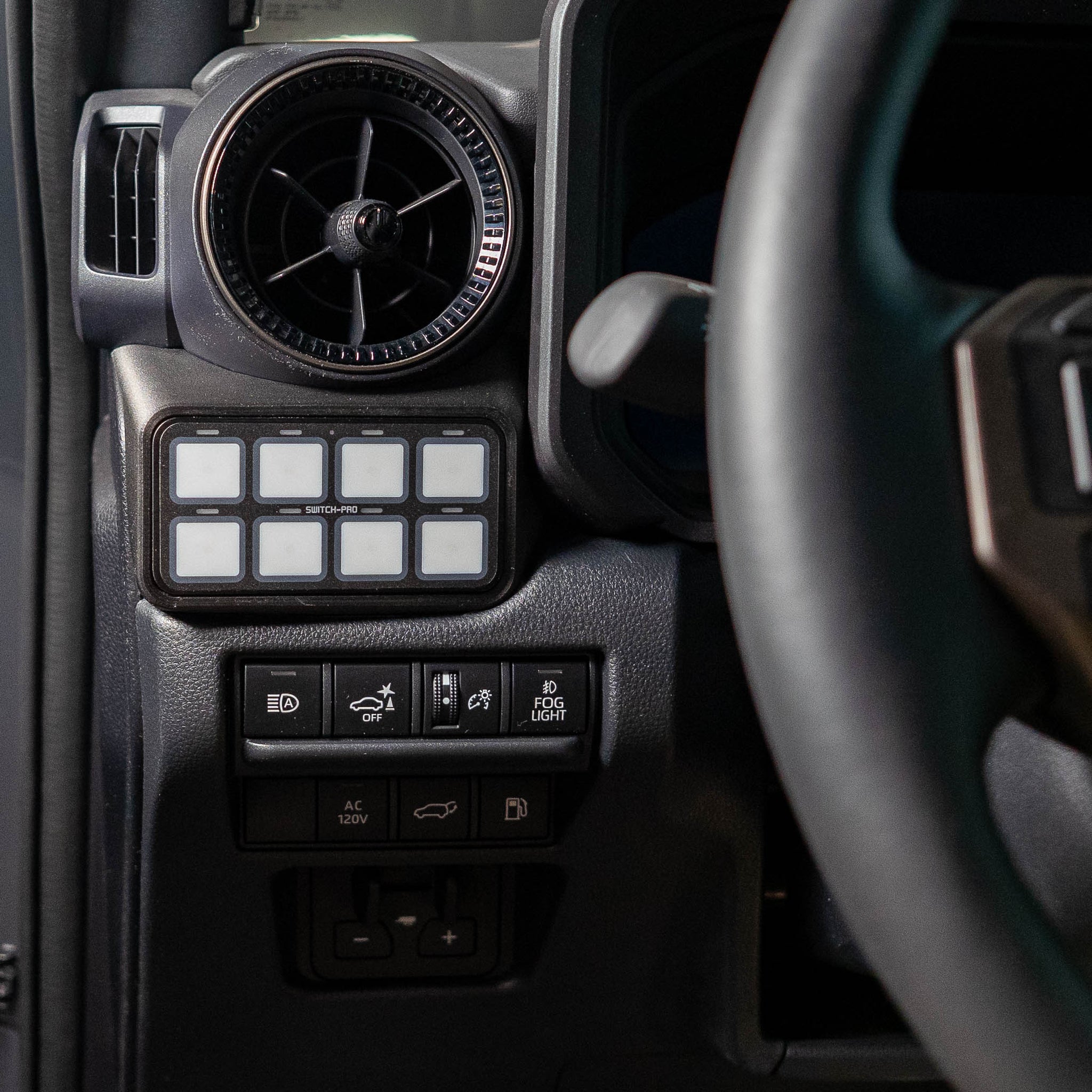

The SDHQ Built Switch Pros SP9100 keypad mount seamlessly installs into your dash to the left of the steering wheel, allowing you to control electrical accessories from one keypad. Not in the vehicle and need to turn something on? The SP9100 is also controllable via Bluetooth through the Switch Pros app.

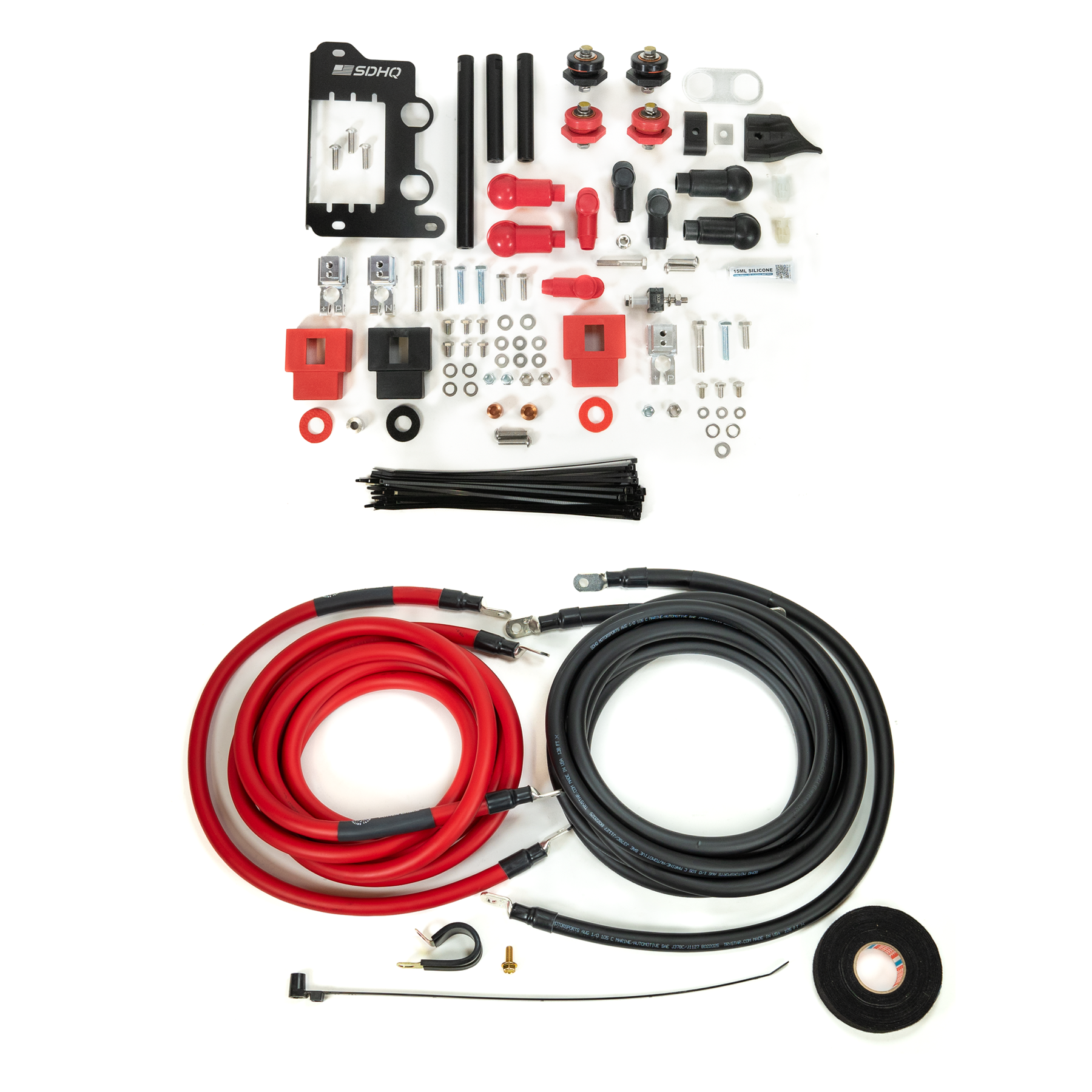

SDHQ Built 2024+ LC250 Under Hood Power Solution Kit Key Features:

• Designed to fit 2024+ LC250
• Complete 12-Volt Under Hood Solution

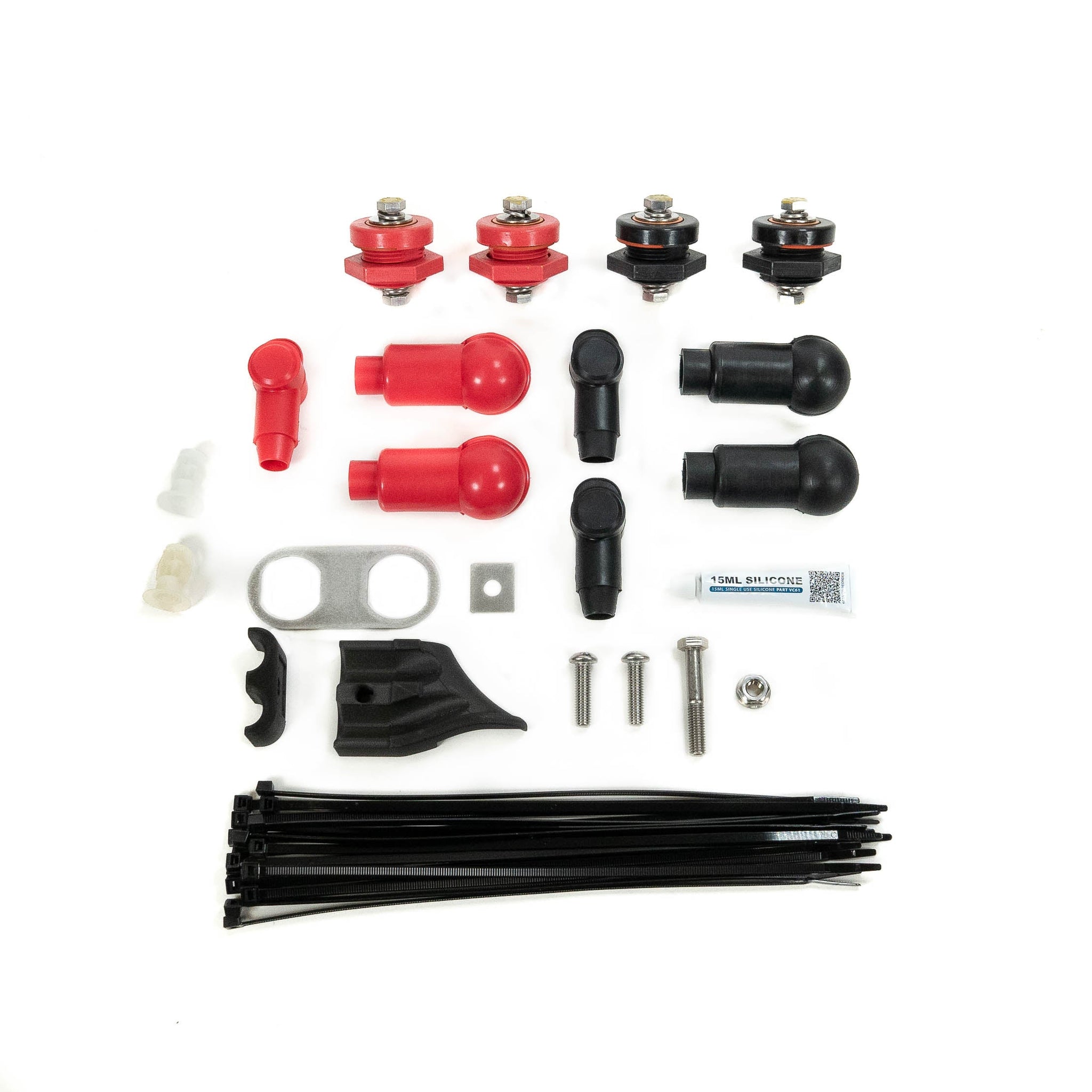

• Remote Mount Billet Battery Terminals w/ Protective Boots

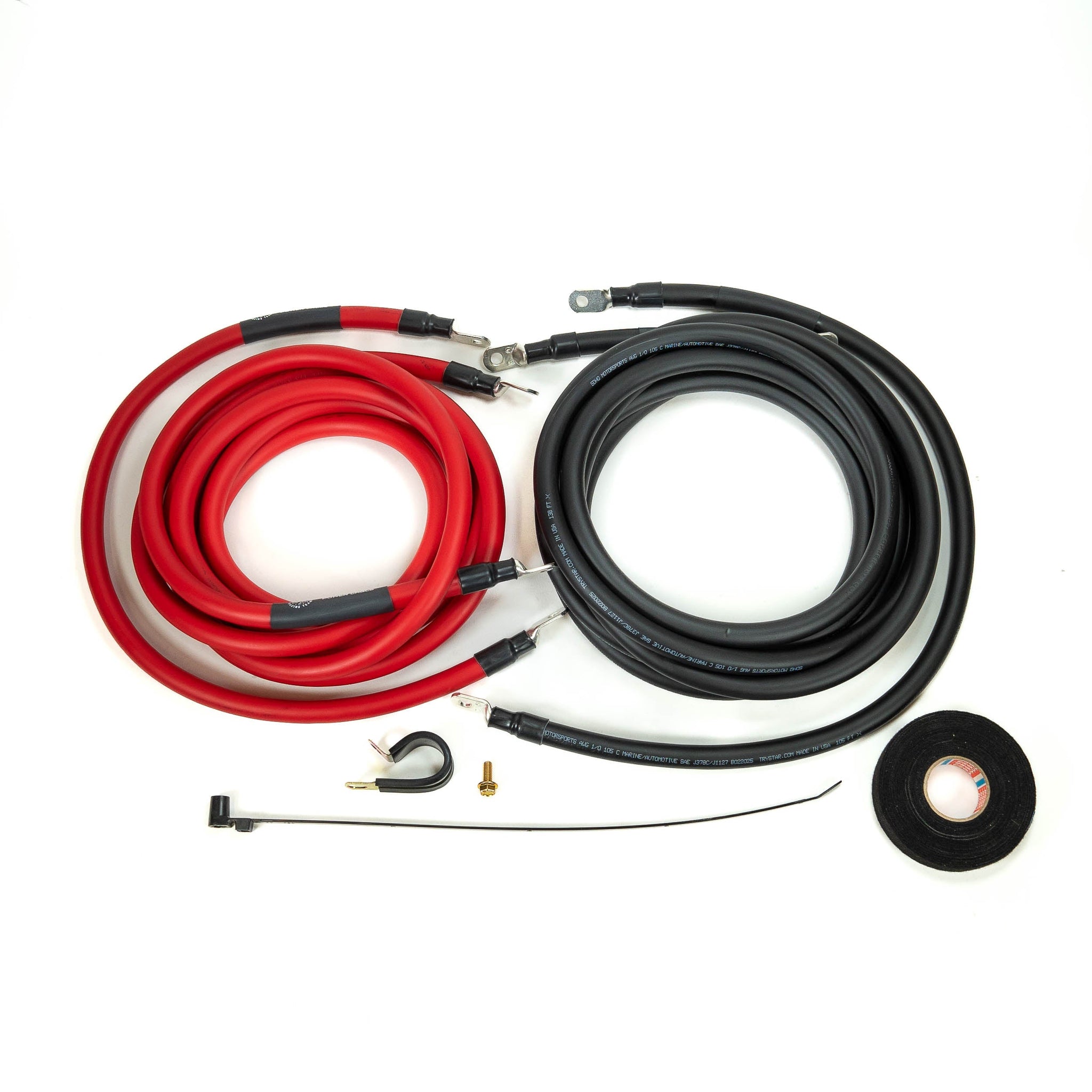

• 1/0 Dual Layer Jacketed Battery Cable (Rated for 350 amps continuous)
• Copper Core Pass Through Bushings rated for 440 amps continuous (535 max for 12 min.)
• 500 amp Fused for shorting protection and use with winches (9% voltage drop @500 amps)

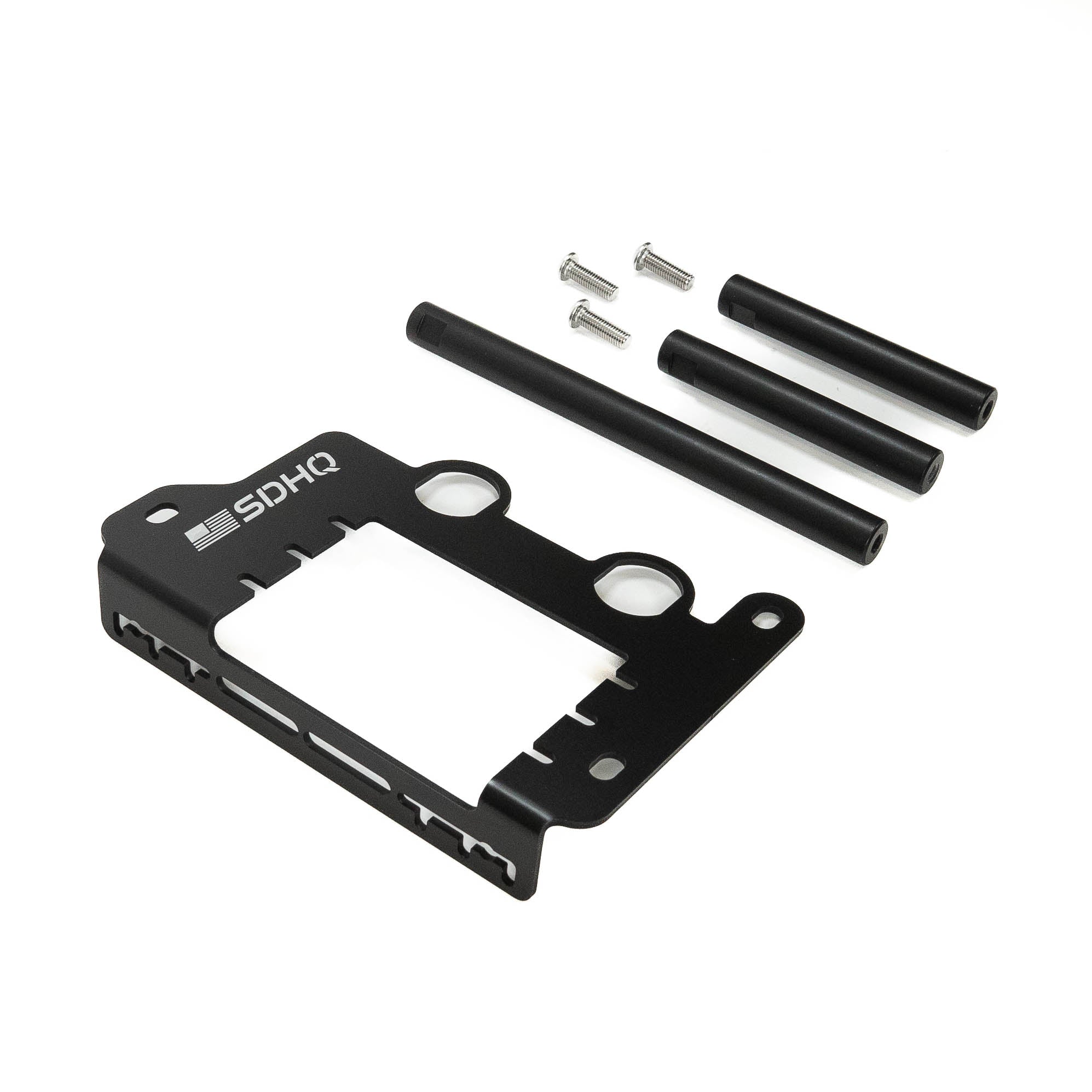

• Power Module Mounting:
  • • Switch Pros SP9100 (multiple mounting options)
• Optional Pass Through Tool Kit:
  • • ⅛” and 3/16” stubby drill bits
    • 1-¼” Hole Saw
• 2-3 hour Install Time + any accessory wiring

Installation Instructions

interior mount key features:

• 3D CAD designed, engineered, & built 100% in-house for the best quality, fit, and finish.

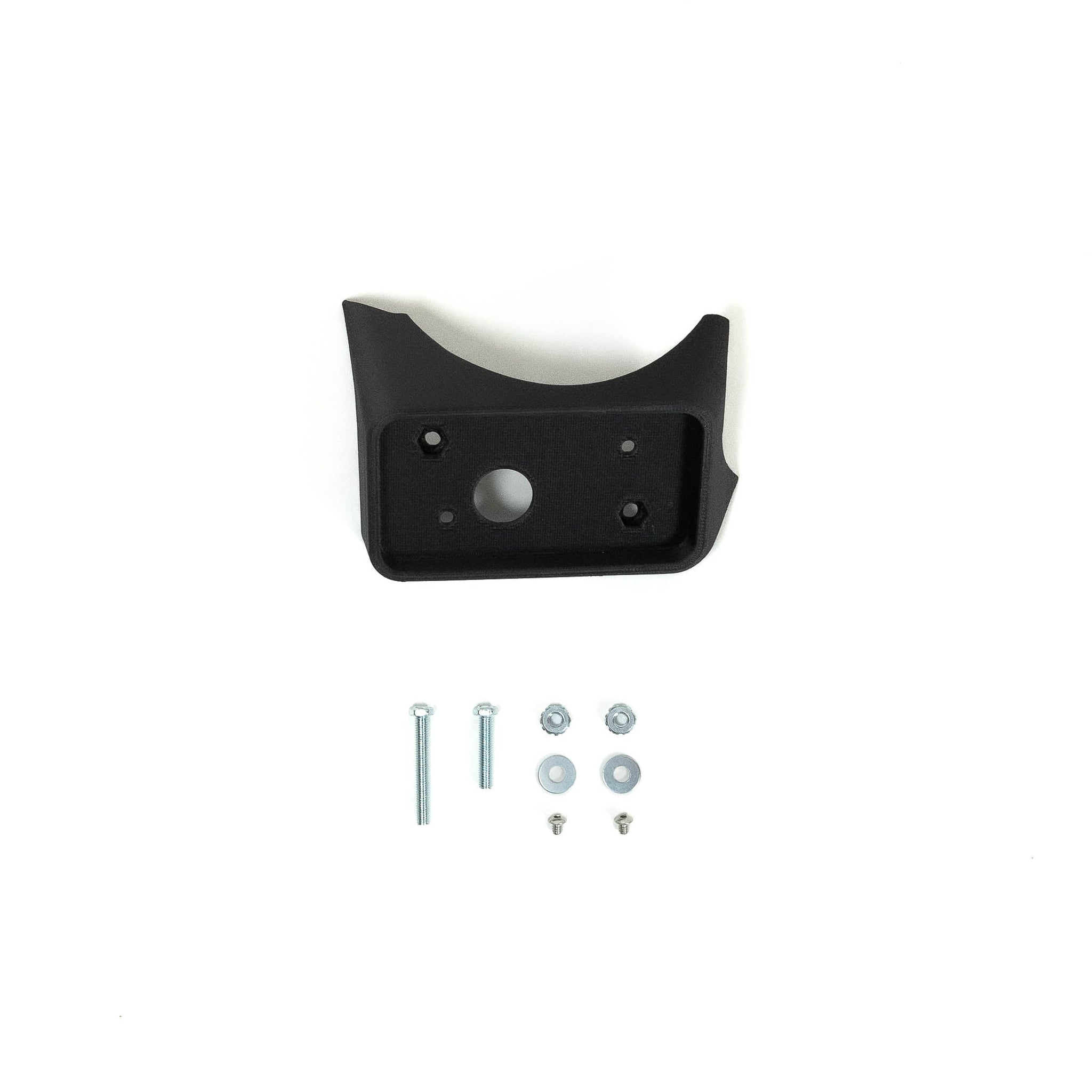

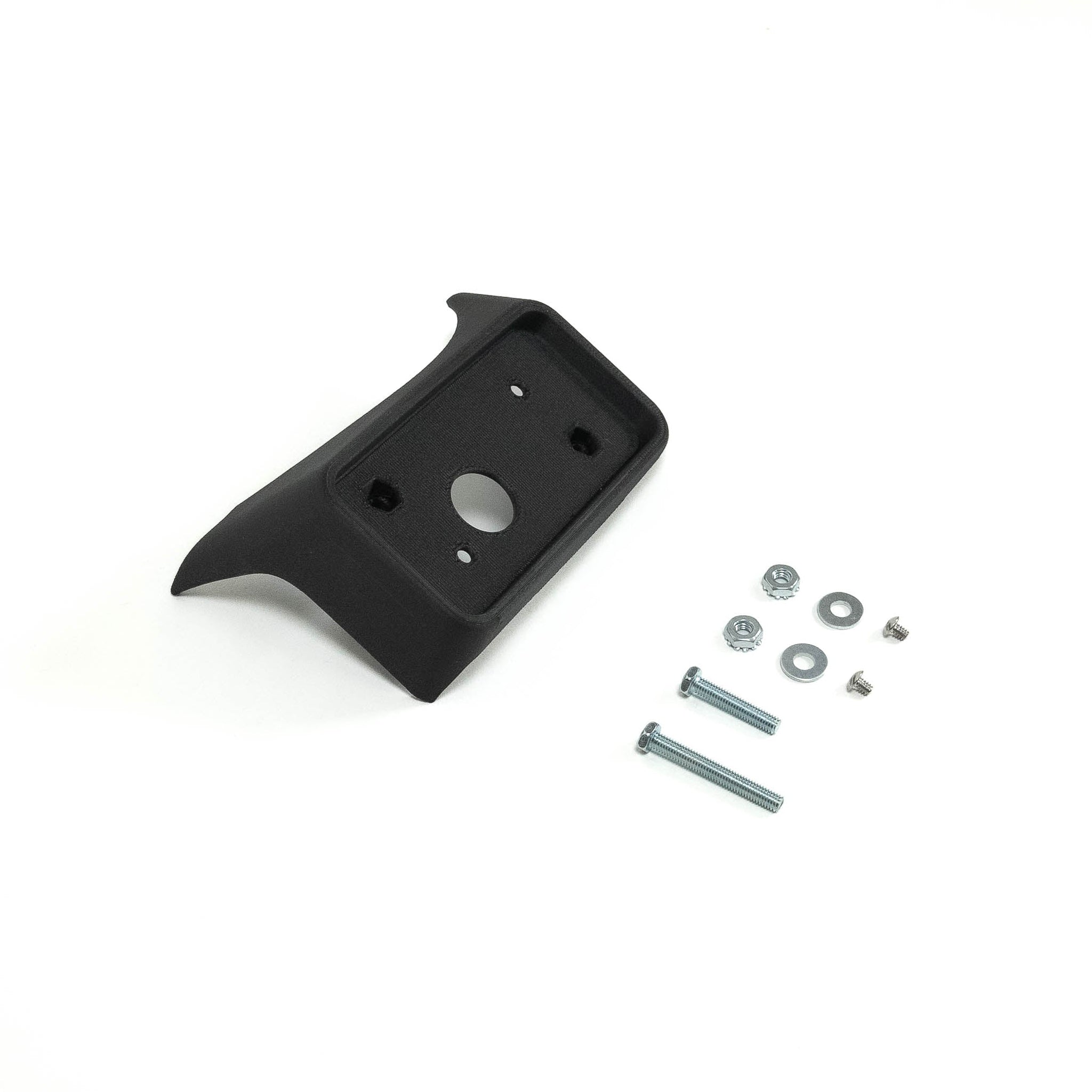

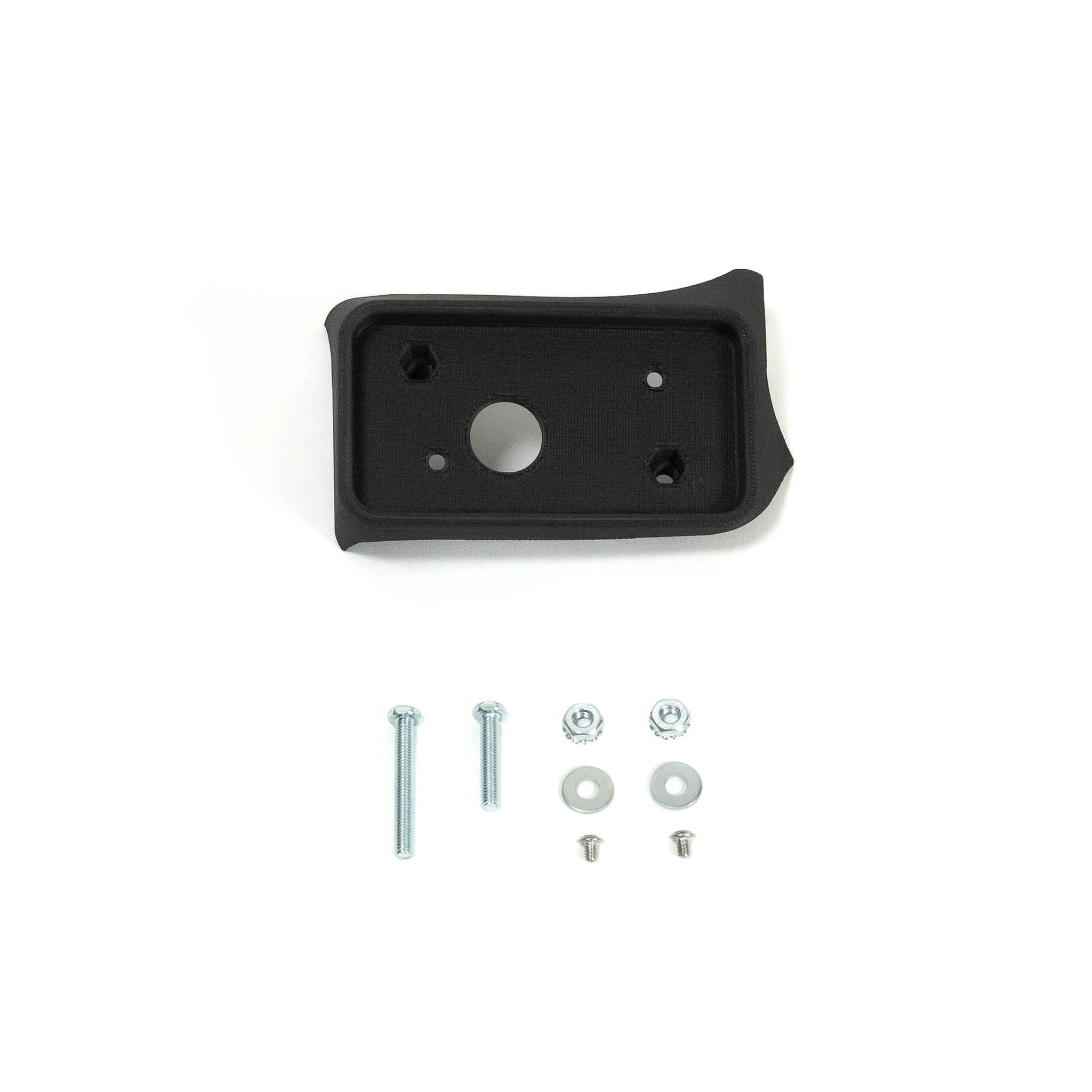

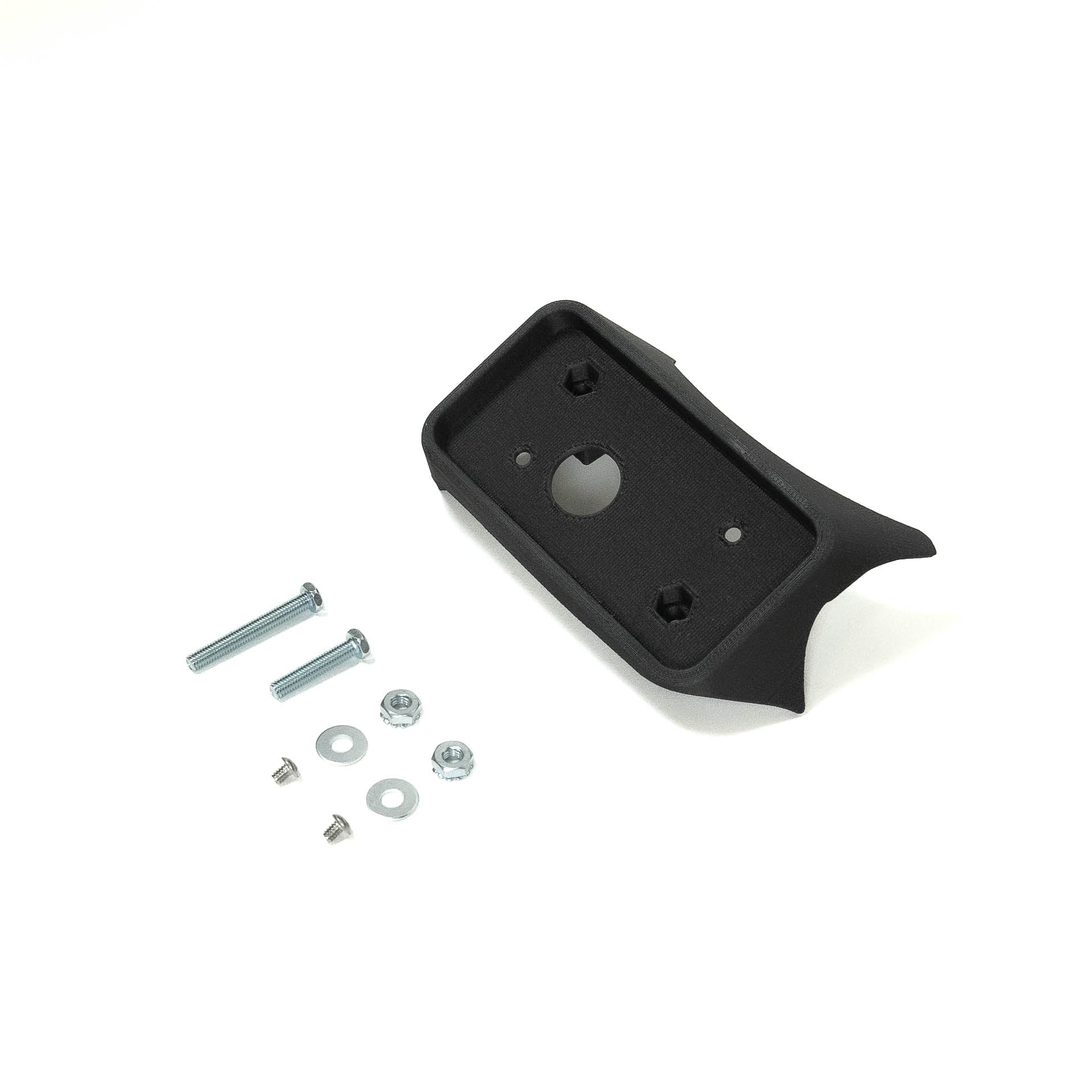

• Replaces the factory dash panel to the left of the steering wheel with a Switch Pros 9100 keypad mount.
• Carbon Fiber Reinforced Nylon 3D Printed Switch Pros Keypad Mount.
• Tight tolerances provide a clean OEM+ fit and finish.
• Drilling behind a dash panel is required for installation.
• Does not fit the Switch Pros RCR12.

installation instructions

Switch Pros SP9100 Features:

• RGB Backlighting
• Built-in Bluetooth module for use with free Switch-Pros App
• Program and operate your panel from any device with access to the iOS or Google Play Store
• Battery Voltage Readout on App screen
• Orange LED switch indicators
• LED Input Status Indicators for easy troubleshooting on power module

Specifications

• 125amp capacity with 8 outputs
• 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
• Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 2” W x .375” H
• Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
• Automatic Power-Up upon vehicle start up
• Time Delay off
• No bulky relay box
• Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 Switch Panels to One Power Module

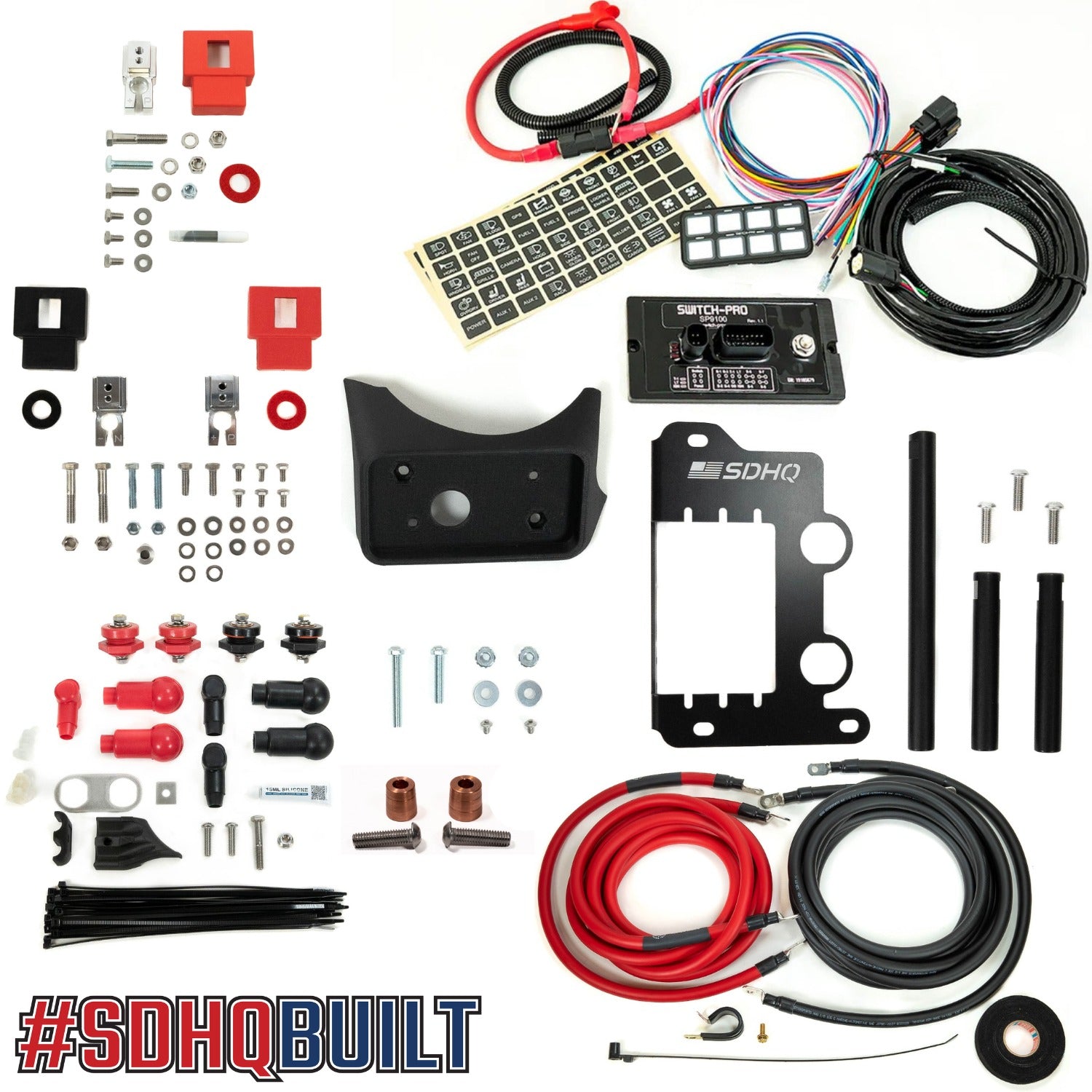

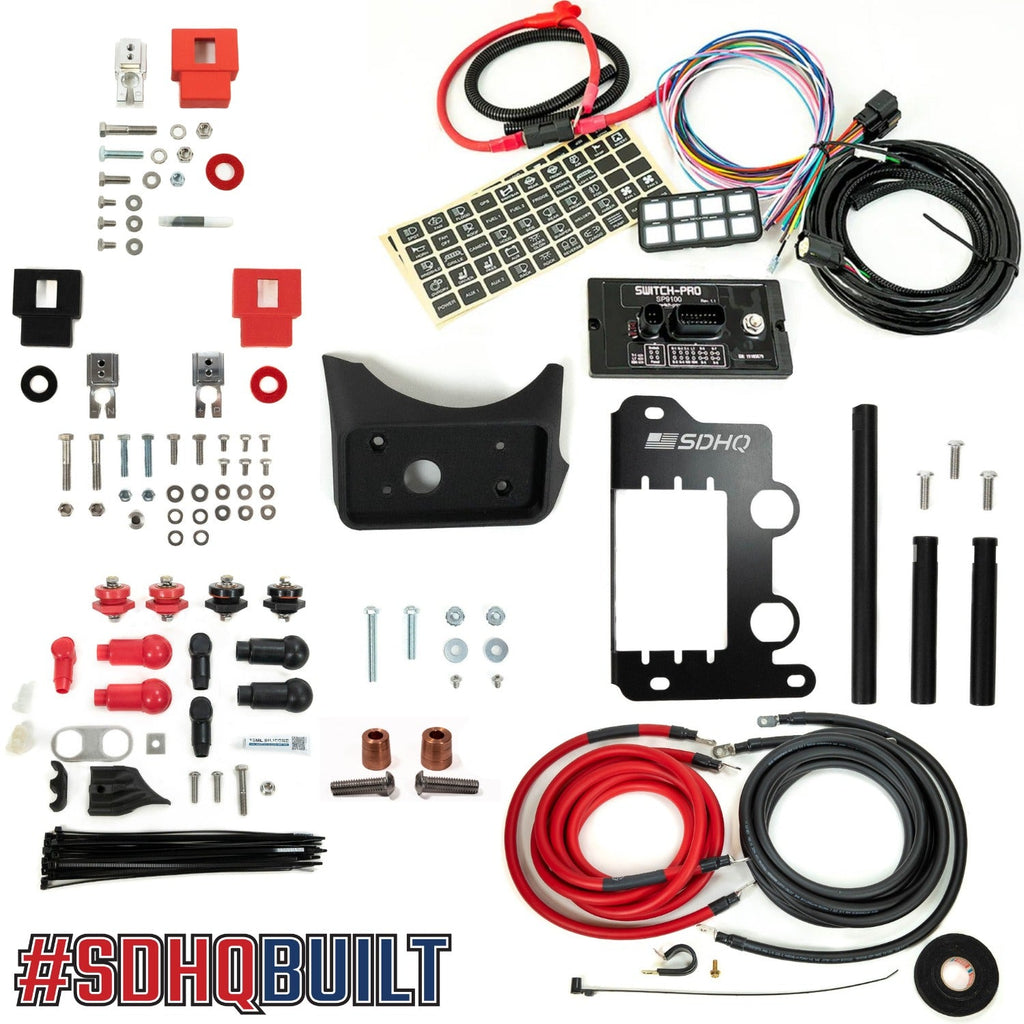

What’s Included?

• Switch Panel and Power Module
• RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)
• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 125A inline fuse
• 125 User Selectable Legends included (Horizontal orientation)
• Installation brackets and hardware
• 16-pin color coded output harness
• Detailed installation Guide
