OVERVIEW
If you are planning on adding lights, a compressor, and other electrical accessories to your 2024+ LC250, this is the way to do it. Our SDHQ Built Under Hood Power Solution kit will create a remote battery terminal power source in the engine bay, capable of safely supplying power to anything from rock lights to a winch. Forget having to route wires all the way to the power source, as you just need to wire your accessories to the Switch Pros SP9100 or Garmin PowerSwitch, conveniently located in the engine bay.

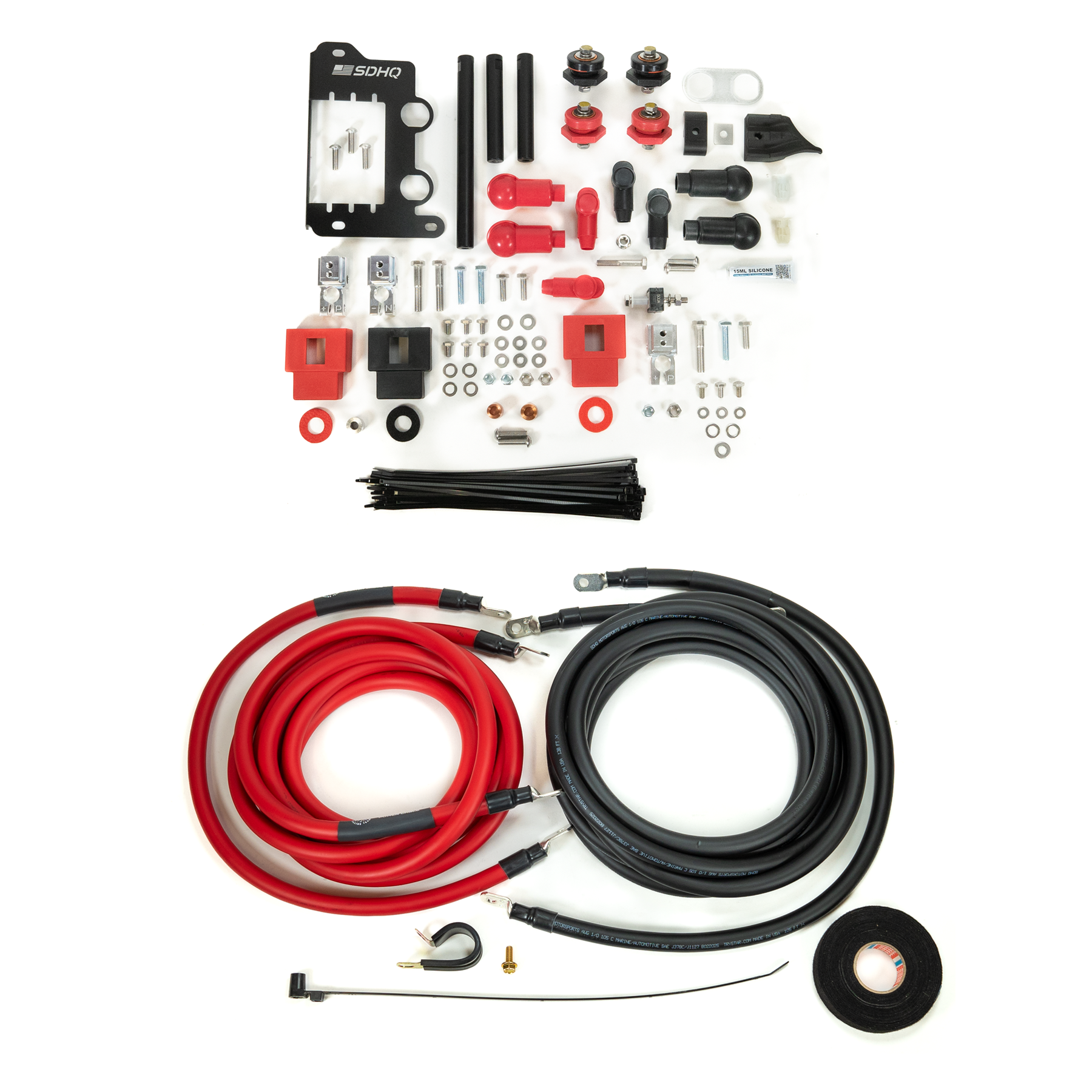

SDHQ Built 2024+ LC250 Under Hood Power Solution Kit Key Features:
- Designed to fit 2024+ LC250
- Complete 12-Volt Under Hood Solution
- Remote Mount Billet Battery Terminals w/ Protective Boots
- 1/0 Dual Layer Jacketed Battery Cable (Rated for 350 amps continuous)
- Copper Core Pass Through Bushings rated for 440 amps continuous (535 max for 12 min.)
- 500 amp Fused for shorting protection and use with winches (9% voltage drop @500 amps)
-
Power Module Mounting:
-
-
Switch Pros SP9100 (multiple mounting options)
- Garmin PowerSwitch
-
Optional Pass Through Tool Kit:
-
- ⅛” and 3/16” stubby drill bits
- 1-¼” Hole Saw
- 2-3 hour Install Time + any accessory wiring
Powered Accessory Controller Options:

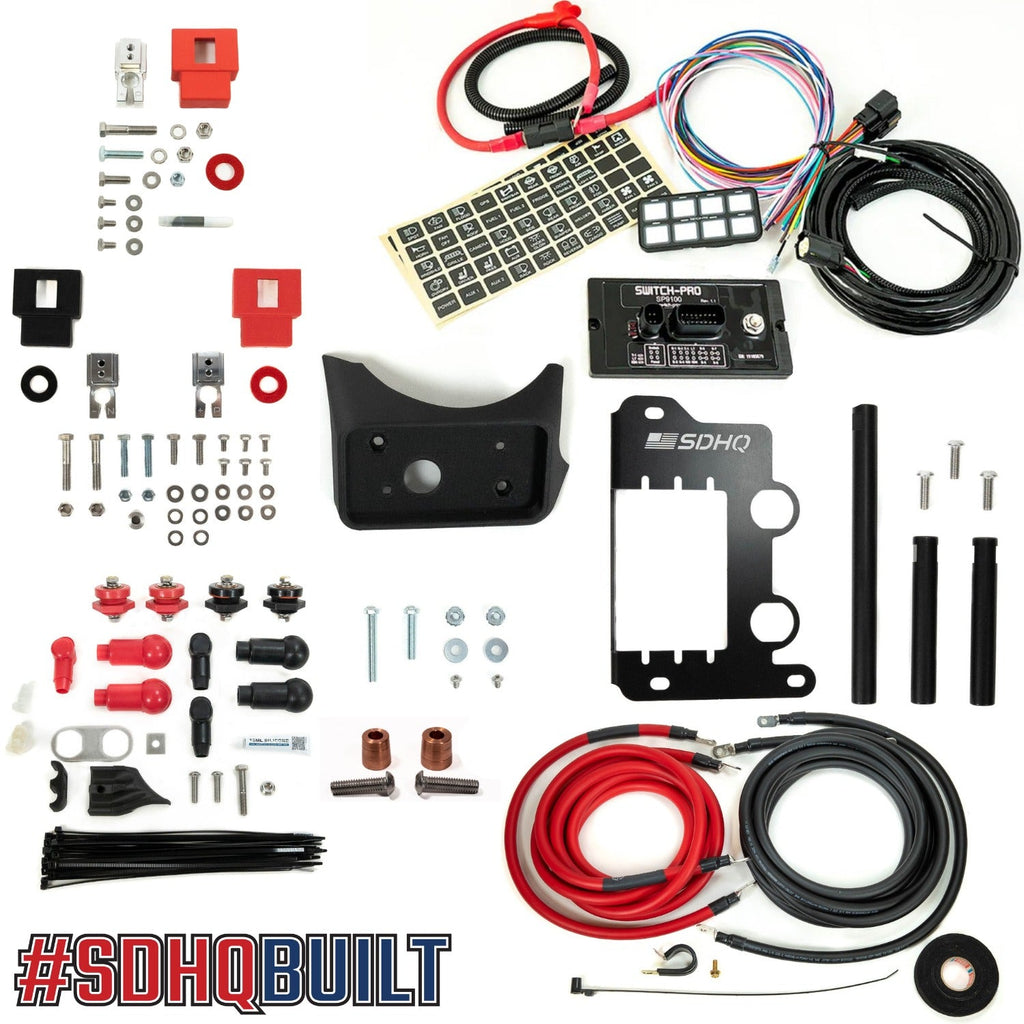

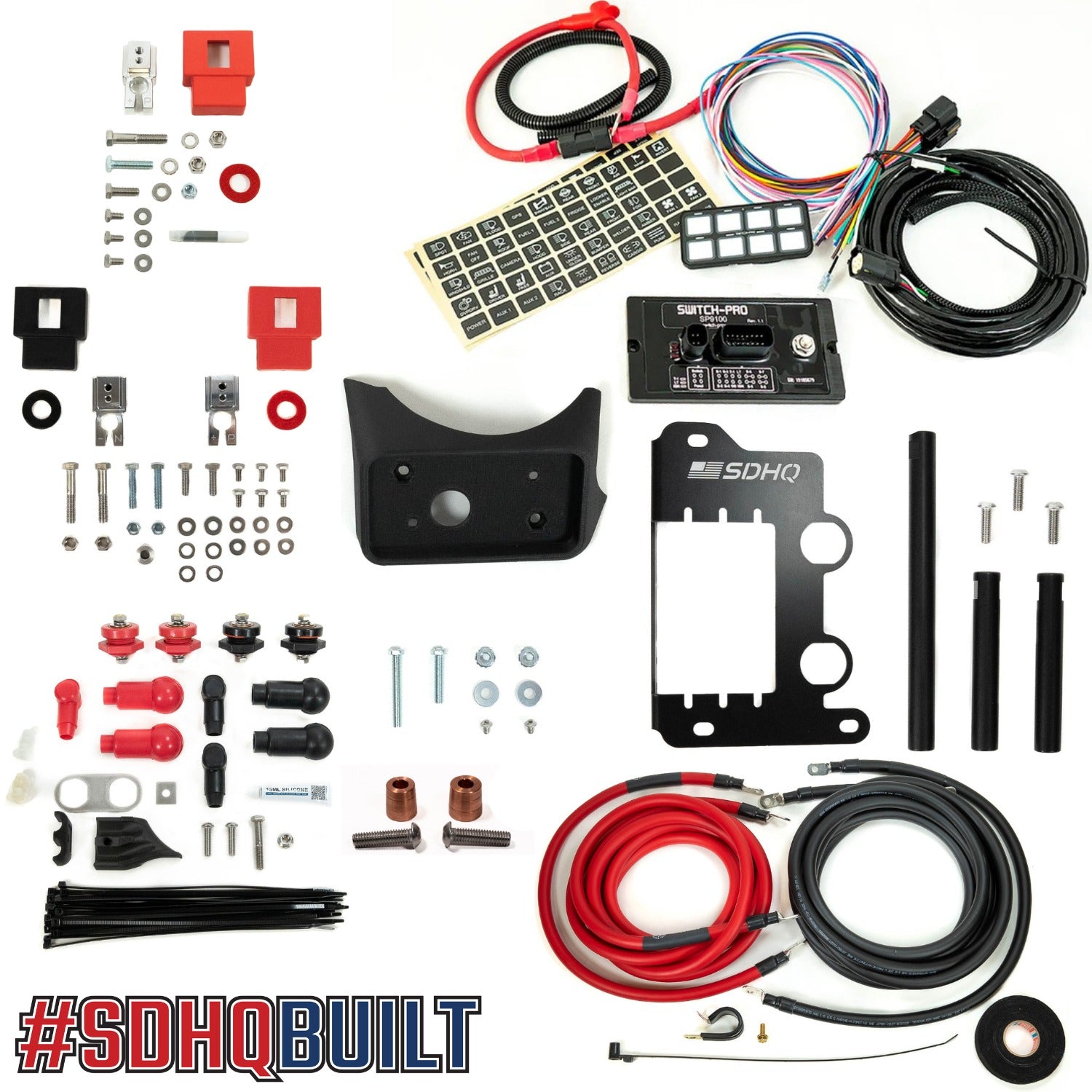

The Switch Pros SP9100 + SDHQ Built SP9100 Interior Keypad Mount:
SDHQ Built Switch Pros SP9100 interior mount key features:
- 3D CAD designed, engineered, & built 100% in-house for the best quality, fit, and finish.
- Replaces the factory dash panel to the left of the steering wheel with a Switch Pros 9100 keypad mount.
- Carbon Fiber Reinforced Nylon 3D Printed Switch Pros Keypad Mount.
- Tight tolerances provide a clean OEM+ fit and finish.
- Drilling behind a dash panel is required for installation.
- Does not fit the Switch Pros RCR12.
Switch Pros SP9100 Features:
- RGB Backlighting
- Built-in Bluetooth module for use with free Switch-Pros App
- Program and operate your panel from any device with access to the iOS or Google Play Store
- Battery Voltage Readout on App screen
- Orange LED switch indicators
- LED Input Status Indicators for easy troubleshooting on power module
Specifications
- 125amp capacity with 8 outputs
- 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
- Adjustable Output Overcurrent Values
- Switch Panel enclosure measures 4” L x 2” W x .375” H
- Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
- Power Module Under Hood rating 125°C to -40°C
- Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
- Preset Dimming function WITH MEMORY (100% to 10% brightness)
- Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
- On/Off or Momentary
- Ignition or Battery Input
- Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
- Automatic Power-Up upon vehicle start up
- Time Delay off
- No bulky relay box
- Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
- Low Voltage Disconnect
- Sleep Mode for minimal power consumption
- Daisy Chain up to 3 Switch Panels to One Power Module
What’s Included?
- Switch Panel and Power Module
- RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
- 11’ of Communication Cable between Switch Panel and Power Module
- Power Cable with 125A inline fuse
- 125 User Selectable Legends included (Horizontal orientation)
- Installation brackets and hardware
- 16-pin color coded output harness
- Detailed installation Guide

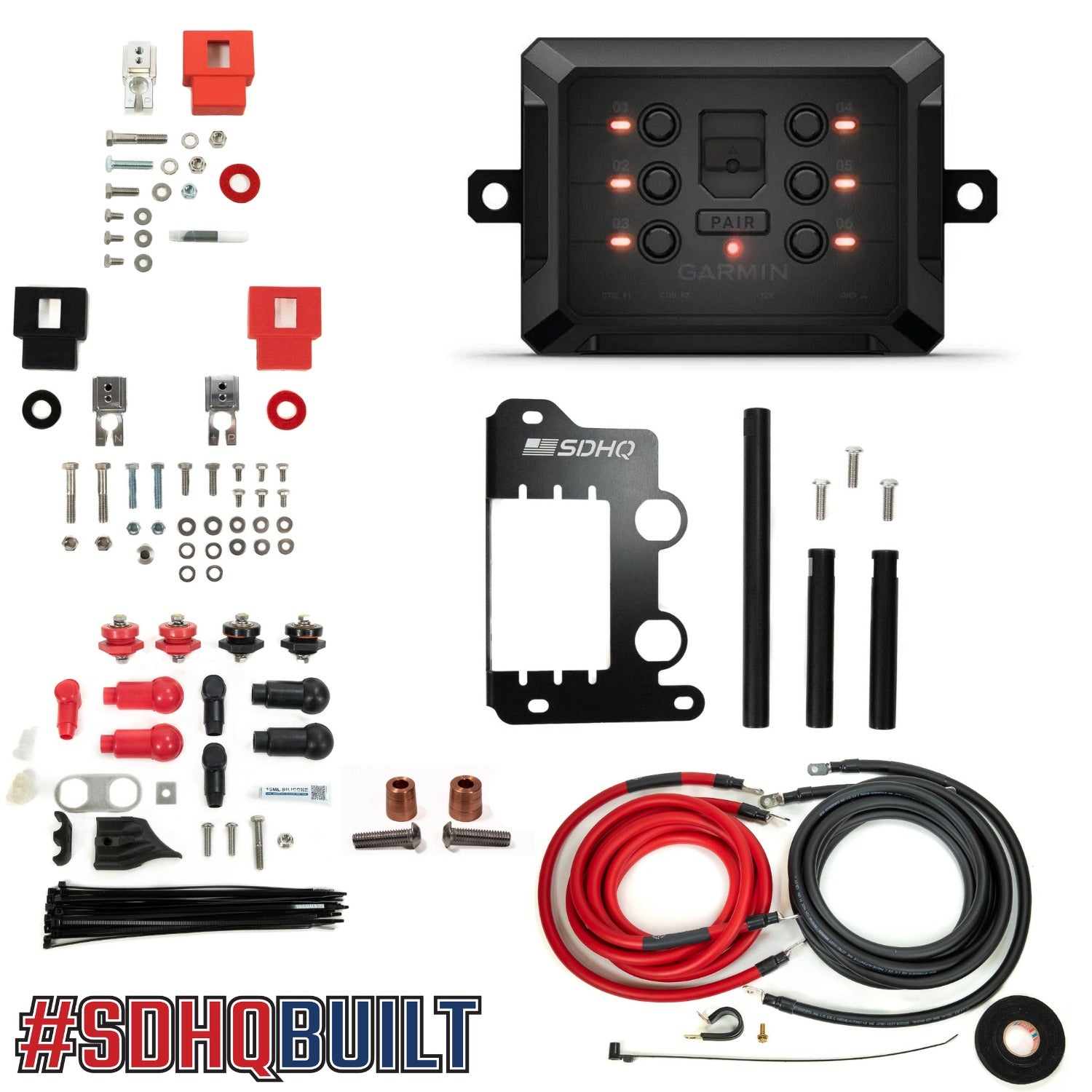

Garmin PowerSwitch:
Features:
Add wireless control for your vehicle's electrical accessories! Garmin PowerSwitch is the compact digital switch box that offers convenient centralized control of your vehicle’s 12-volt accessories from a compatible Garmin navigator or smartphone.
INSTALL MADE SIMPLE
Hassle-free installation lets you connect up to six accessories to one Garmin PowerSwitch box. There’s no interference with your vehicle electronics and no need to cut holes in your dashboard or route wires through the firewall. The compact 5” x 3” x 1” form factor gives you plenty of flexible mounting options on all types of vehicles, ranging from side-by-sides, UTVs and ATVs to off-roading 4x4s and snowmobiles.
CUSTOMIZE SWITCHES
Create custom virtual switch panels with labels, icons and channel groups on the display as well as controls for dimming and flashing of lighting systems. It’s the simple way to control light bars, rock lights and more.
AMPLE OUTLETS
With a total of six circuits rated at up to 30 amps each, you can power and control all types of 12-volt accessories from one Garmin PowerSwitch digital switch box (not intended for controlling motors with reverse polarity).
CONTROL INPUTS
Includes two control inputs that detect a signal from 3.3-volt to 18-volt that can be used to turn on the customizable outputs. For example, you can connect your vehicle ignition switch to a control input terminal to turn on accessories automatically each time you start your vehicle.
LIGHT IT UP
The Garmin PowerSwitch system makes it easy to add all types of exterior lighting packages to your vehicle — everything from light bars and fog lights to emergency flashers and rear and rock lights.
POWER YOUR ADVENTURES
In addition to vehicle lights, you can tap into Garmin PowerSwitch with all types of useful gear: Comm radios, refrigerators, air compressors or virtually anything that can run with 12-volt power.
THE APP
Use the Garmin PowerSwitch app on your compatible Garmin navigator or smartphone to control all your accessories from your touchscreen device.
IN-DASH CONNECTIVITY
Garmin PowerSwitch support for the Apple CarPlay® software feature and Android Auto™ connectivity (enabled via this app) lets you seamlessly view and control switching functions from your vehicle’s compatible in-dash infotainment display.
